TXS0102YZPR

TXS0102YZPR Overview

Product belongs to the TXS0102 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000081 oz SMD/SMT Mounting-Style DSBGA-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Open Drain, Push-Pull Supplier device package: 8-DSBGA, 8-WCSP (1.9x0.9) 1 is 8. Voltage Level Translator logic type This product uses Voltage Level as the translator type This product's Bidirectional 2 Channels The product is designed to operate at 1.65 V ~ 3.6 V. The Voltage-VCCB is set at 2.3 V ~ 5.5 V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 3.6 V 5.5 V Minimum supply voltage is 1.65 V 2.3 V 260 ns is 23 microseconds.

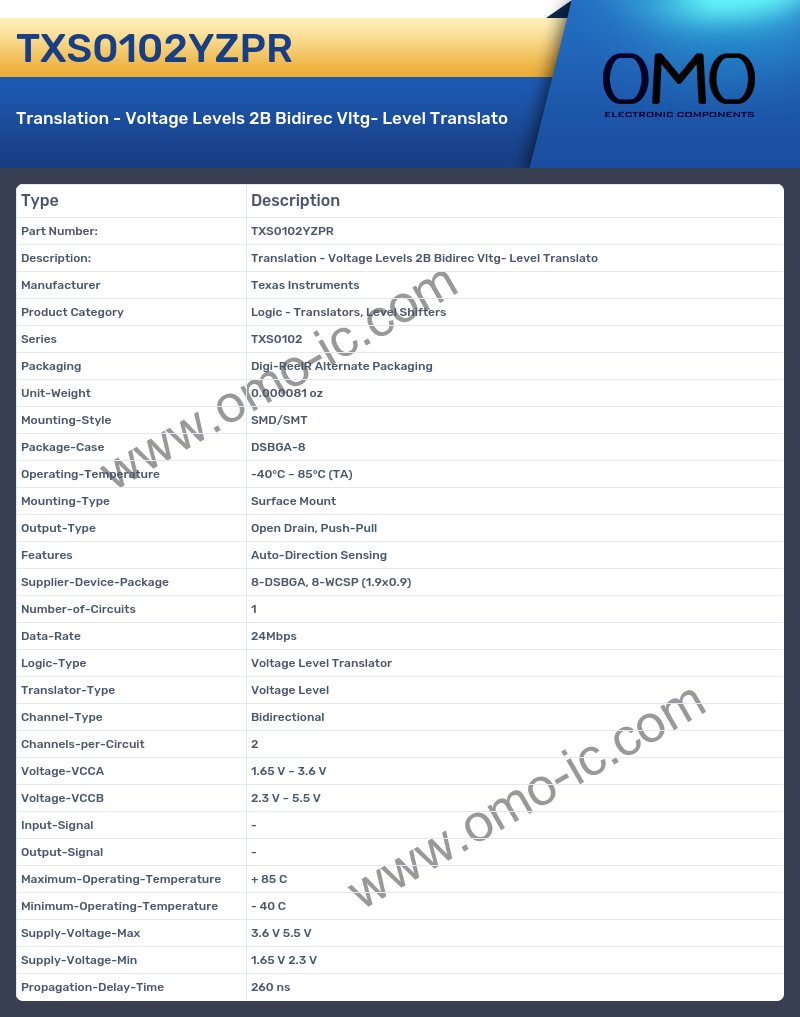

TXS0102YZPR Image

TXS0102YZPR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Translators, Level Shifters
• Series TXS0102
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000081 oz
• Mounting-Style SMD/SMT
• Package-Case DSBGA-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Open Drain, Push-Pull
• Features Auto-Direction Sensing
• Supplier-Device-Package 8-DSBGA, 8-WCSP (1.9x0.9)
• Number-of-Circuits 1
• Data-Rate 24Mbps
• Logic-Type Voltage Level Translator
• Translator-Type Voltage Level
• Channel-Type Bidirectional
• Channels-per-Circuit 2
• Voltage-VCCA 1.65 V ~ 3.6 V
• Voltage-VCCB 2.3 V ~ 5.5 V
• Input-Signal -
• Output-Signal -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 3.6 V 5.5 V
• Supply-Voltage-Min 1.65 V 2.3 V
• Propagation-Delay-Time 260 ns
