| Mfr. #: | UC2572DTR |
|---|---|
| 制造商: | Texas Instruments |
| 描述: | Switching Controllers Neg-Out Flyback Pls Width Modulato |
| 生命周期: | 制造商新产品。 |
| 数据表: | UC2572DTR 数据表 |

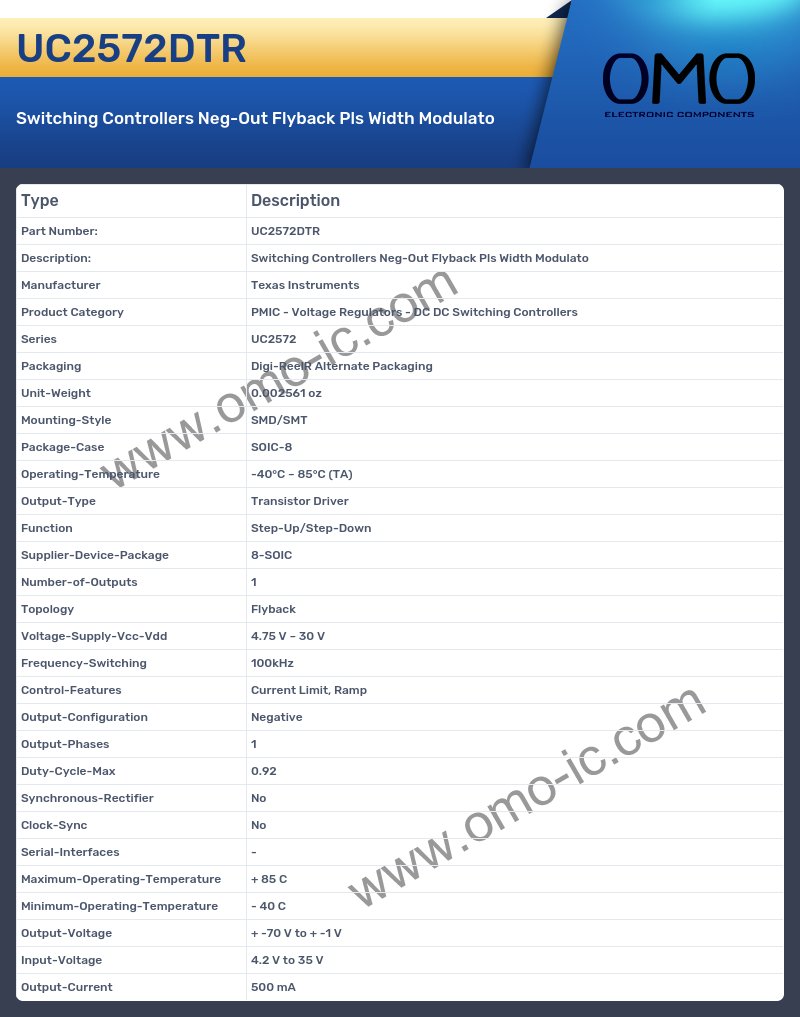

Product belongs to the UC2572 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 8-SOIC Number-of-Outputs: 1 Topology: Flyback feedback Supply Voltage: 4.75 V ~ 30 V This product features 'Frequency-Switching' at 100kHz for optimal performance. The Control-Features include Current Limit, Ramp function. The Negative. Output-Phases: 1 Maximum duty cycle of 0.92 The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: + -70 V to + -1 V Input Voltage Range: 4.2 V to 35 V Output current: 500 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
UC2572DTR Specifications
