| Mfr. #: | UC2842D8 |
|---|---|
| 制造商: | Texas Instruments |
| 描述: | Switching Controllers Current-Mode PWM Controlle |
| 生命周期: | 制造商新产品。 |
| 数据表: | UC2842D8 数据表 |
Product belongs to the UC2842 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Supplier device package: 8-SOIC Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Boost, Flyback, Forward feedback Supply Voltage: 10 V ~ 30 V This product features 'Frequency-Switching' at Up to 500kHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output current: 1000 mA Switching frequency is 450 kHz This product has a 50 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum duty cycle of 100 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

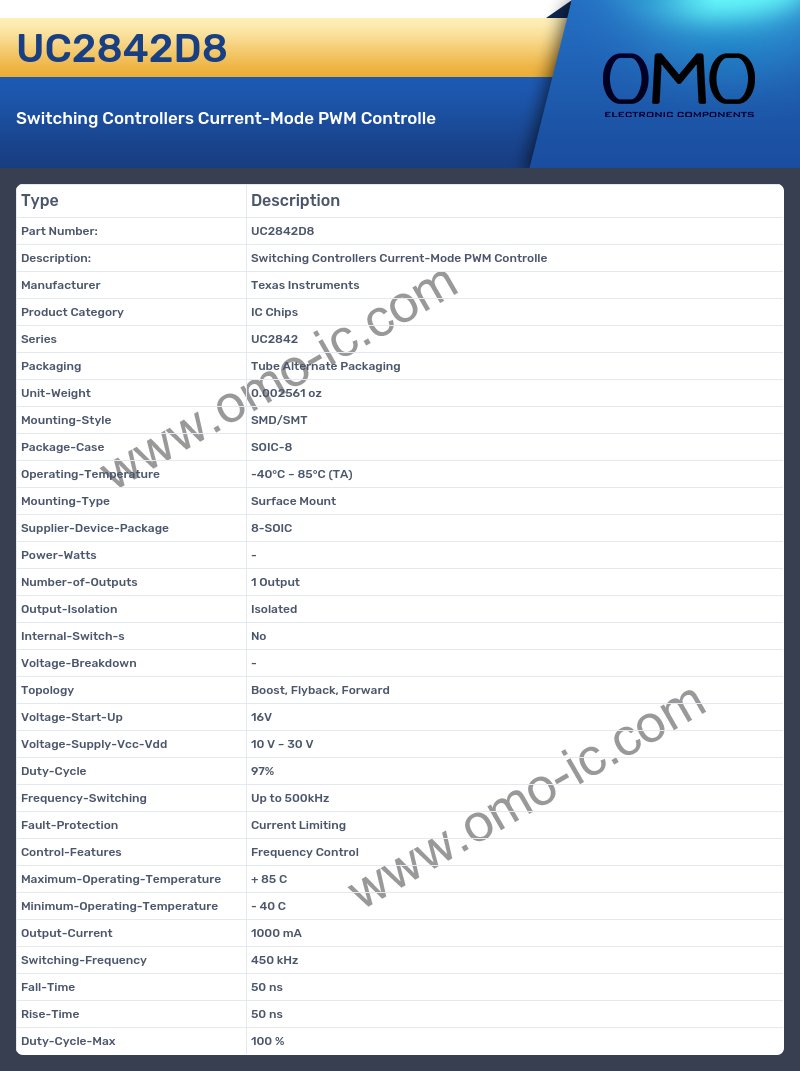

UC2842D8 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed UC2842
A: At what frequency does the Packaging?
Q: The product Packaging is Tube Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.002561 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOIC-8.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 85°C (TA)
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 8-SOIC.
A: At what frequency does the Number-of-Outputs?
Q: The product Number-of-Outputs is 1 Output.
A: At what frequency does the Output-Isolation?
Q: The product Output-Isolation is Isolated.
A: Is the cutoff frequency of the product Internal-Switch-s?
Q: Yes, the product's Internal-Switch-s is indeed No
A: At what frequency does the Topology?
Q: The product Topology is Boost, Flyback, Forward.
A: Is the cutoff frequency of the product Voltage-Supply-Vcc-Vdd?
Q: Yes, the product's Voltage-Supply-Vcc-Vdd is indeed 10 V ~ 30 V
A: At what frequency does the Frequency-Switching?
Q: The product Frequency-Switching is Up to 500kHz.
A: At what frequency does the Control-Features?
Q: The product Control-Features is Frequency Control.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 85 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: What is the Output-Current of the product?
Q: The Output-Current of the product is 1000 mA.
A: Is the cutoff frequency of the product Switching-Frequency?
Q: Yes, the product's Switching-Frequency is indeed 450 kHz
A: Is the cutoff frequency of the product Fall-Time?
Q: Yes, the product's Fall-Time is indeed 50 ns
A: At what frequency does the Rise-Time?
Q: The product Rise-Time is 50 ns.
A: Is the cutoff frequency of the product Duty-Cycle-Max?
Q: Yes, the product's Duty-Cycle-Max is indeed 100 %
