UC2863N

UC2863N Overview

Product belongs to the - series. Tube is the packaging method for this product 16-DIP (0.300", 7.62mm) Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 16-PDIP Number-of-Outputs: 2 Topology: Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 7 V ~ 22 V This product features 'Frequency-Switching' at 50kHz ~ 500kHz for optimal performance. The Control-Features include Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 1 The value of No is included as a product attribute. No enabled Serial Interfaces: -

UC2863N Image

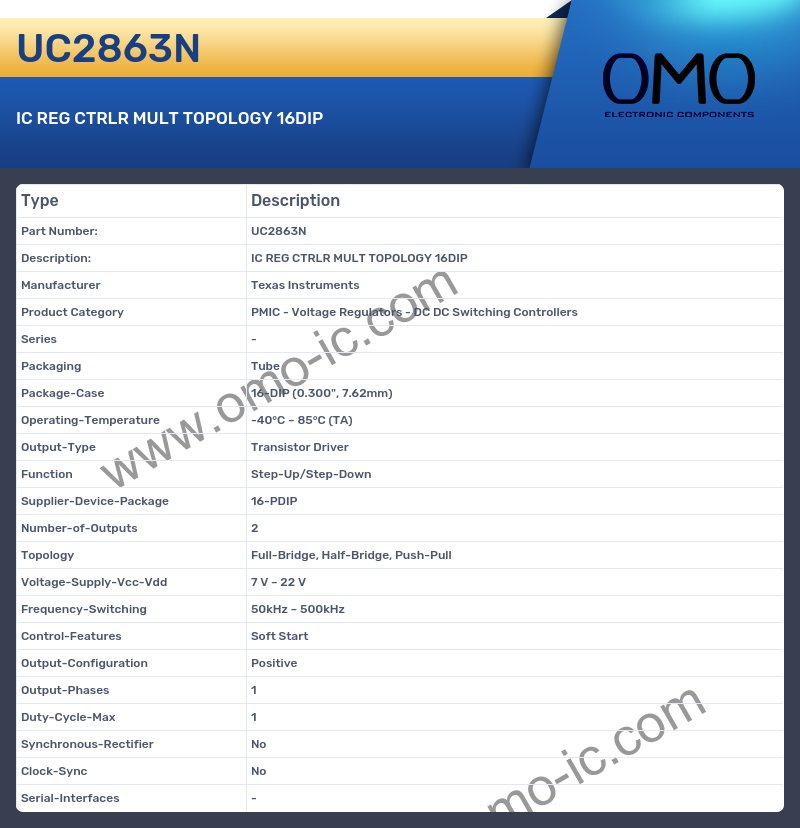

UC2863N Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Package-Case 16-DIP (0.300", 7.62mm)
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Up/Step-Down
• Supplier-Device-Package 16-PDIP
• Number-of-Outputs 2
• Topology Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 7 V ~ 22 V
• Frequency-Switching 50kHz ~ 500kHz
• Control-Features Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 1
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
