UC3843D8

UC3843D8 Overview

Product belongs to the UC3843 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 8-SOIC Number-of-Outputs: 1 Topology: Buck, Boost, Flyback, Forward Converter feedback Supply Voltage: 7.6 V ~ 30 V This product features 'Frequency-Switching' at 500kHz for optimal performance. The Control-Features include Frequency Control function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 100 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 2.5 V supply voltage for reliable performance. Output voltage: 5 V 11 mA is 92 nA. Output current: 1 A Switching frequency is 450 kHz This product has a 50 ns of 16 ns. This product has a 50 ns of 16 ns.

UC3843D8 Image

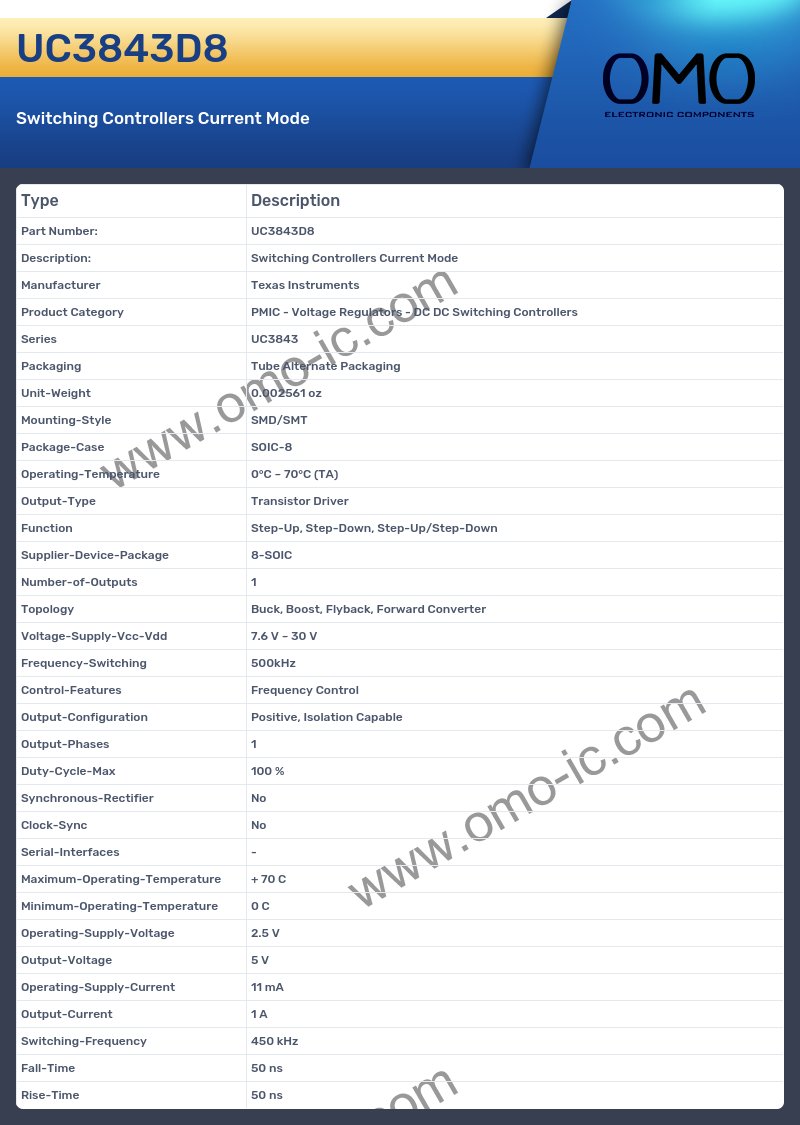

UC3843D8 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UC3843
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 8-SOIC
• Number-of-Outputs 1
• Topology Buck, Boost, Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 7.6 V ~ 30 V
• Frequency-Switching 500kHz
• Control-Features Frequency Control
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 100 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 2.5 V
• Output-Voltage 5 V
• Operating-Supply-Current 11 mA
• Output-Current 1 A
• Switching-Frequency 450 kHz
• Fall-Time 50 ns
• Rise-Time 50 ns
