UCC3946DTR

UCC3946DTR Overview

Product belongs to the UCC3946 series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Push-Pull Supplier device package: 8-SOIC The Push-Pull, Totem Pole. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 160 ms Minimum. This product's Adjustable/Selectable. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 10 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V This product includes Watchdog This product's 2 V to 5.5 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's Adjustable is 200 ms. The 1.26 V is 2.35 V. Adjustable is set to 2.29 V.

UCC3946DTR Image

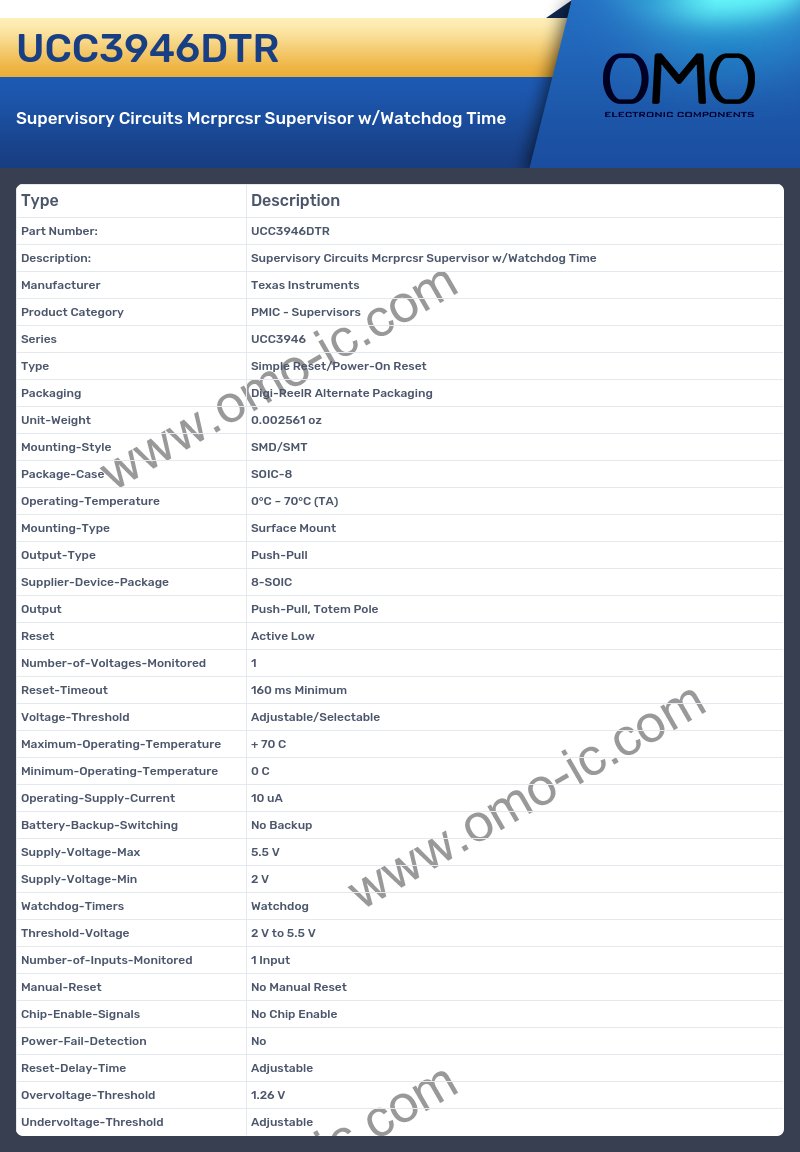

UCC3946DTR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series UCC3946
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Supplier-Device-Package 8-SOIC
• Output Push-Pull, Totem Pole
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 160 ms Minimum
• Voltage-Threshold Adjustable/Selectable
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 10 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2 V
• Watchdog-Timers Watchdog
• Threshold-Voltage 2 V to 5.5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time Adjustable
• Overvoltage-Threshold 1.26 V
• Undervoltage-Threshold Adjustable
