| Mfr. #: | ULN2003ADE4 |
|---|---|
| 制造商: | Texas Instruments |
| 描述: | Darlington Transistors Darlington |
| 生命周期: | 制造商新产品。 |
| 数据表: | ULN2003ADE4 数据表 |

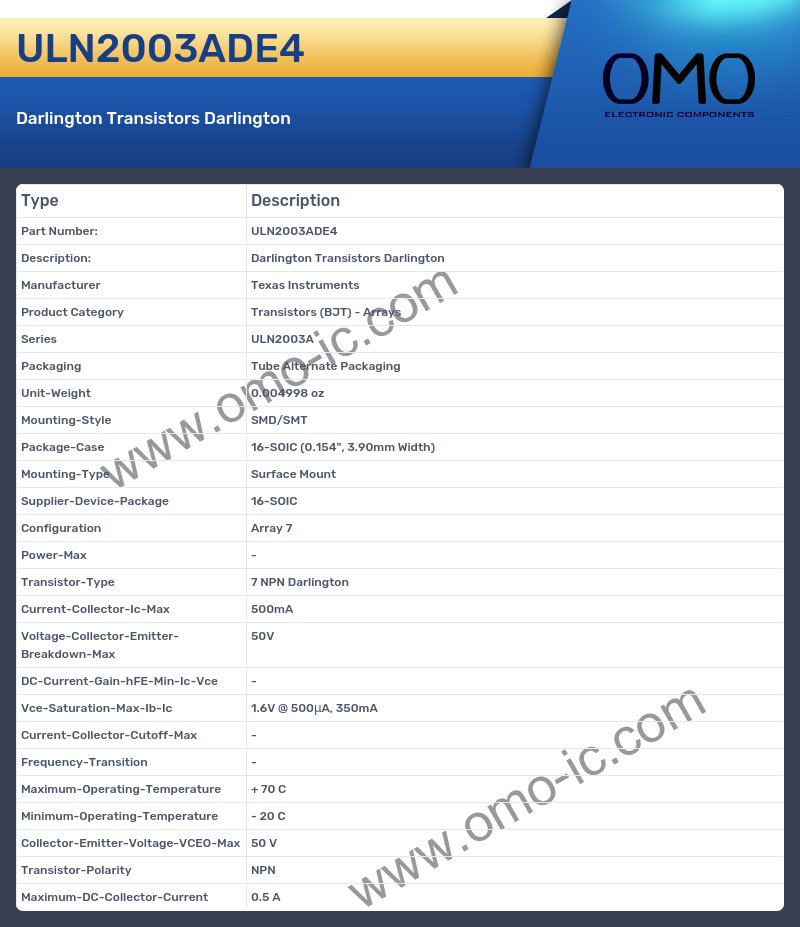

Product belongs to the ULN2003A series. Tube Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style 16-SOIC (0.154", 3.90mm Width) Surface Mount mounting type Supplier device package: 16-SOIC Configuration Array 7 Transistor type: 7 NPN Darlington Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 50V DC current gain minimum (hFE) of Ic/Vce at -. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.6V @ 500μA, 350mA Maximum operating temperature of + 70 C Minimum operating temperature: - 20 C Rated VCEO up to 50 V The transistor polarity is NPN. Max DC collector current: 0.5 A
