ULN2801A

ULN2801A Overview

Product belongs to the ULN2801A series. Tube is the packaging method for this product Weight of 0.044801 oz Through Hole Mounting-Style 18-DIP (0.300", 7.62mm) Through Hole mounting type Supplier device package: 18-DIP Configuration Octal Transistor type: 8 NPN Darlington Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 50V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 350mA, 2V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.6V @ 500μA, 350mA Maximum operating temperature of + 85 C Minimum operating temperature: - 20 C Rated VCEO up to 50 V The transistor polarity is NPN. Max DC collector current: 0.5 A This product is capable of handling a 500 mA continuous collector current. Minimum hfe for DC collector-base gain is 1000.

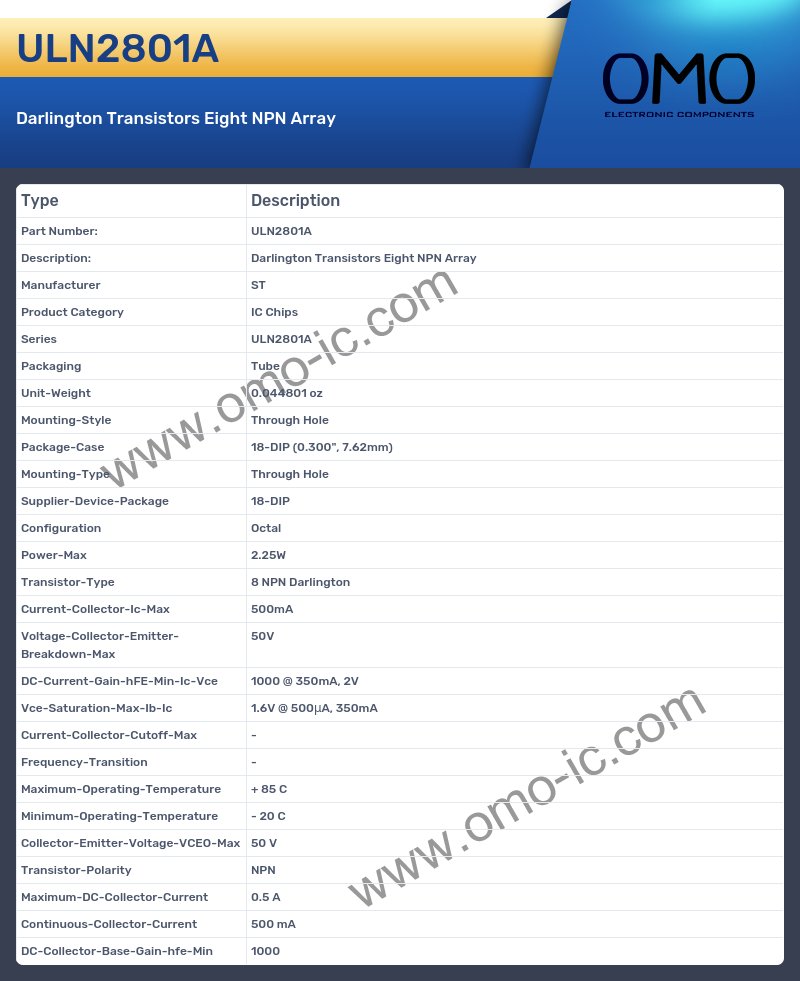

ULN2801A Image

ULN2801A Specifications

• Manufacturer ST
• Product Category IC Chips
• Series ULN2801A
• Packaging Tube
• Unit-Weight 0.044801 oz
• Mounting-Style Through Hole
• Package-Case 18-DIP (0.300", 7.62mm)
• Mounting-Type Through Hole
• Supplier-Device-Package 18-DIP
• Configuration Octal
• Power-Max 2.25W
• Transistor-Type 8 NPN Darlington
• Current-Collector-Ic-Max 500mA
• Voltage-Collector-Emitter-Breakdown-Max 50V
• DC-Current-Gain-hFE-Min-Ic-Vce 1000 @ 350mA, 2V
• Vce-Saturation-Max-Ib-Ic 1.6V @ 500μA, 350mA
• Current-Collector-Cutoff-Max -
• Frequency-Transition -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 20 C
• Collector-Emitter-Voltage-VCEO-Max 50 V
• Transistor-Polarity NPN
• Maximum-DC-Collector-Current 0.5 A
• Continuous-Collector-Current 500 mA
• DC-Collector-Base-Gain-hfe-Min 1000
