VN7016AJTR

VN7016AJTR Overview

Product belongs to the VIPower series. This product is categorized as Power Switches Type: High Side Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSSO-16 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: PowerSSO-16 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 16 mOhm. Voltage-Load range is 4 V ~ 28 V. Our product delivers a 55A of 50mA for efficient power management. The Switch-Type is General Purpose. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 13 V supply voltage for reliable performance. Maximum supply voltage of 28 V Minimum supply voltage is 4 V Max on-resistance of 32 mOhms Maximum off time: 100 us This product's 77 A feature is adjustable. Maximum on-time: 120 us

VN7016AJTR Image

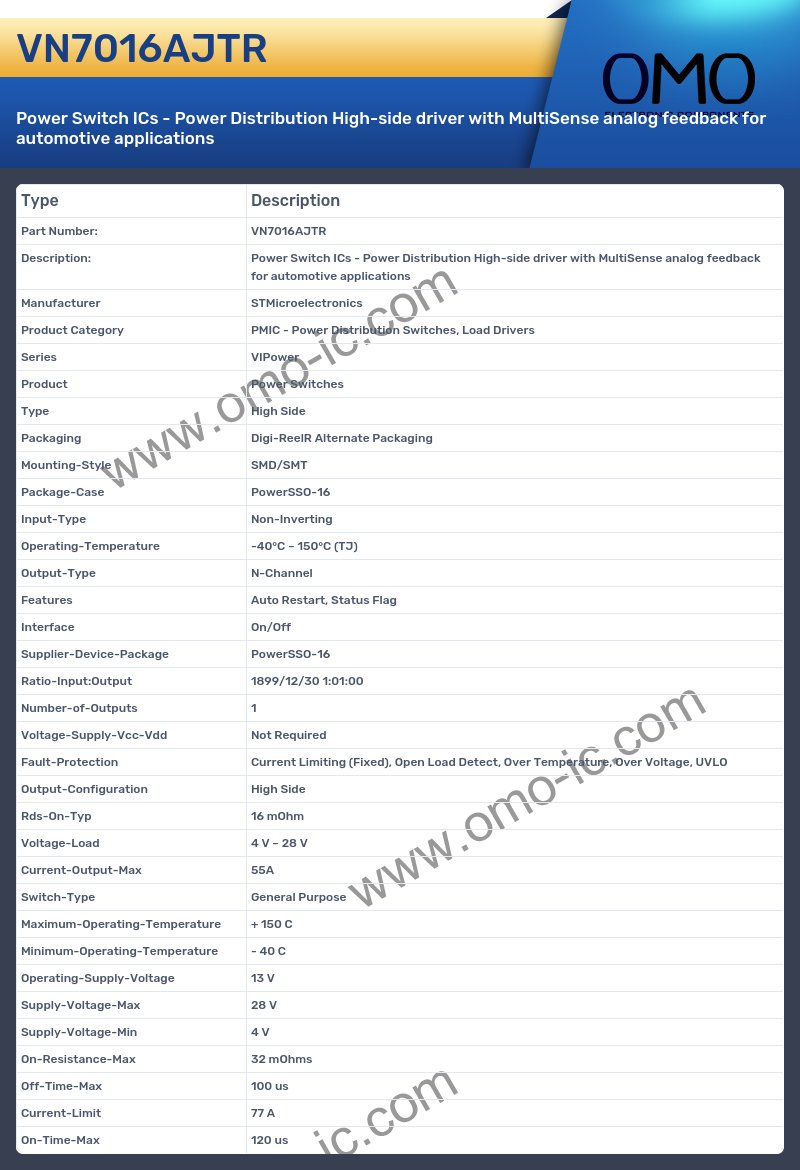

VN7016AJTR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series VIPower
• Product Power Switches
• Type High Side
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSSO-16
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Auto Restart, Status Flag
• Interface On/Off
• Supplier-Device-Package PowerSSO-16
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
• Output-Configuration High Side
• Rds-On-Typ 16 mOhm
• Voltage-Load 4 V ~ 28 V
• Current-Output-Max 55A
• Switch-Type General Purpose
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 13 V
• Supply-Voltage-Max 28 V
• Supply-Voltage-Min 4 V
• On-Resistance-Max 32 mOhms
• Off-Time-Max 100 us
• Current-Limit 77 A
• On-Time-Max 120 us
