VND5N07-E

VND5N07-E Overview

Product belongs to the OMNIFET II, VIPower series. Tube is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Number of channels: 1 Channel Interface: On/Off Supplier device package: TO-252 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The Low Side. The 200 mOhm (Max). Voltage-Load range is 55V (Max). Our product delivers a 3.5A of 50mA for efficient power management. The Switch-Type is General Purpose. Transistor type: 1 N-Channel Power-off control: 60 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 70 V. The 200 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. This product features a 4 S of 500 S for high performance.

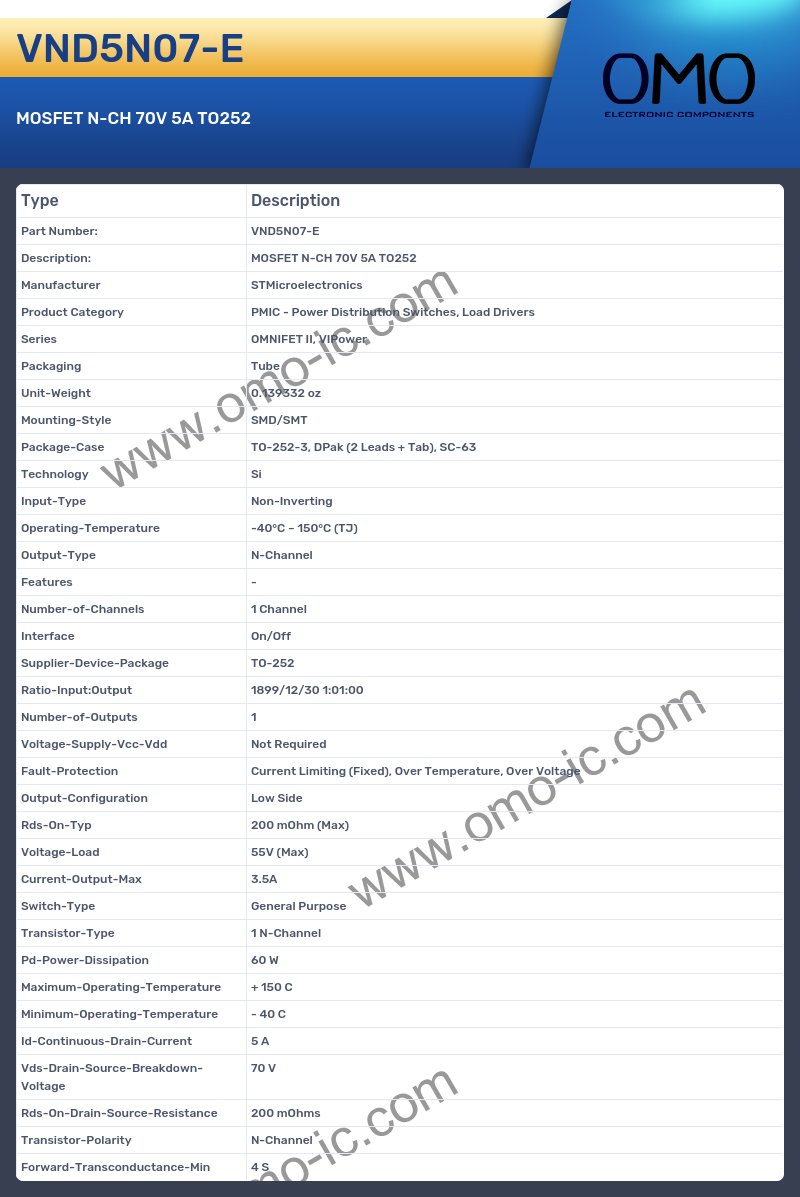

VND5N07-E Image

VND5N07-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET II, VIPower
• Packaging Tube
• Unit-Weight 0.139332 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Technology Si
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features -
• Number-of-Channels 1 Channel
• Interface On/Off
• Supplier-Device-Package TO-252
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Output-Configuration Low Side
• Rds-On-Typ 200 mOhm (Max)
• Voltage-Load 55V (Max)
• Current-Output-Max 3.5A
• Switch-Type General Purpose
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 60 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Id-Continuous-Drain-Current 5 A
• Vds-Drain-Source-Breakdown-Voltage 70 V
• Rds-On-Drain-Source-Resistance 200 mOhms
• Transistor-Polarity N-Channel
• Forward-Transconductance-Min 4 S
