VND5T050AKTR-E

VND5T050AKTR-E Overview

Product belongs to the VIPower series. This product is categorized as MOSFET Gate Drivers Type: Double Channel High Side Driver Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSSO-24 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: PowerSSO-24 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Non-Inverting Number-of-Outputs: 2 Supply Voltage: Not Required The High Side. The 50 mOhm. Voltage-Load range is 8 V ~ 36 V. Our product delivers a 24A of 50mA for efficient power management. The Switch-Type is General Purpose. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 4.2 mA is 92 nA. Maximum supply voltage of 36 V Minimum supply voltage is 8 V Number-of-Drivers: 2 Driver This product has a Maximum-Turn-Off-Delay-Time of 40 us. 30 us maximum turn-on delay time

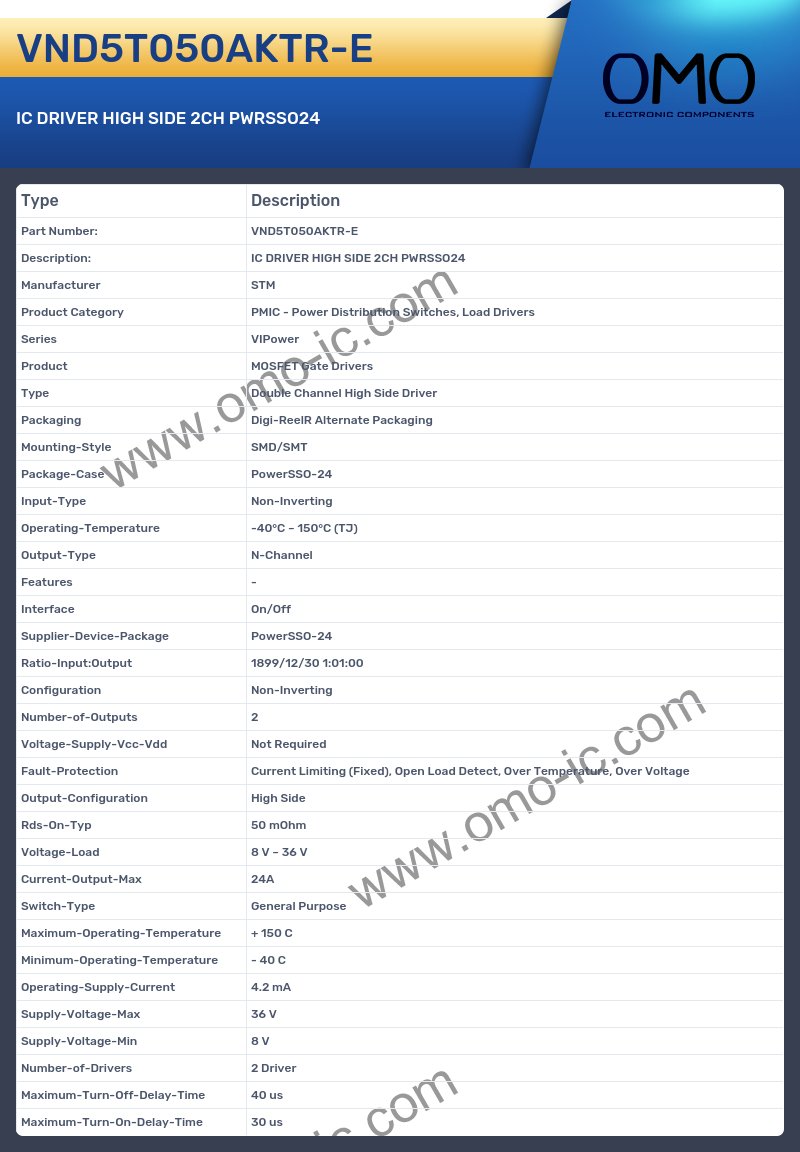

VND5T050AKTR-E Image

VND5T050AKTR-E Specifications

• Manufacturer STM
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series VIPower
• Product MOSFET Gate Drivers
• Type Double Channel High Side Driver
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSSO-24
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package PowerSSO-24
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Non-Inverting
• Number-of-Outputs 2
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
• Output-Configuration High Side
• Rds-On-Typ 50 mOhm
• Voltage-Load 8 V ~ 36 V
• Current-Output-Max 24A
• Switch-Type General Purpose
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 4.2 mA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 8 V
• Number-of-Drivers 2 Driver
• Maximum-Turn-Off-Delay-Time 40 us
• Maximum-Turn-On-Delay-Time 30 us
