VND810PEPTR-E

VND810PEPTR-E Overview

Product belongs to the VIPower series. Type: High Side Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSSO-12 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: PowerSSO-12 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Non-Inverting Number-of-Outputs: 2 Supply Voltage: Not Required The High Side. The 160 mOhm (Max). Voltage-Load range is 5.5 V ~ 36 V. Our product delivers a 3.5A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 54000 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 25 uA is 92 nA. Minimum supply voltage is 5.5 V Number-of-Drivers: 2 Driver This product has a Maximum-Turn-Off-Delay-Time of 30000 ns. 30000 ns maximum turn-on delay time

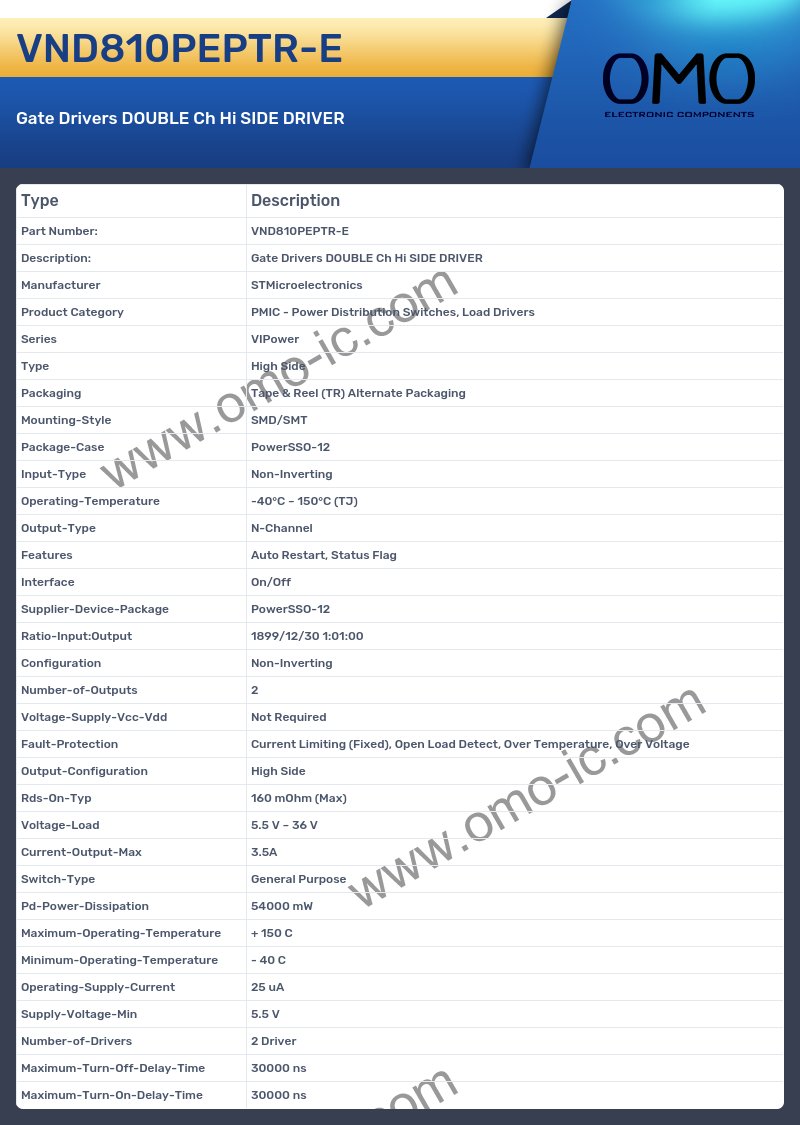

VND810PEPTR-E Image

VND810PEPTR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series VIPower
• Type High Side
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSSO-12
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Auto Restart, Status Flag
• Interface On/Off
• Supplier-Device-Package PowerSSO-12
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Non-Inverting
• Number-of-Outputs 2
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
• Output-Configuration High Side
• Rds-On-Typ 160 mOhm (Max)
• Voltage-Load 5.5 V ~ 36 V
• Current-Output-Max 3.5A
• Switch-Type General Purpose
• Pd-Power-Dissipation 54000 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 25 uA
• Supply-Voltage-Min 5.5 V
• Number-of-Drivers 2 Driver
• Maximum-Turn-Off-Delay-Time 30000 ns
• Maximum-Turn-On-Delay-Time 30000 ns
